Description

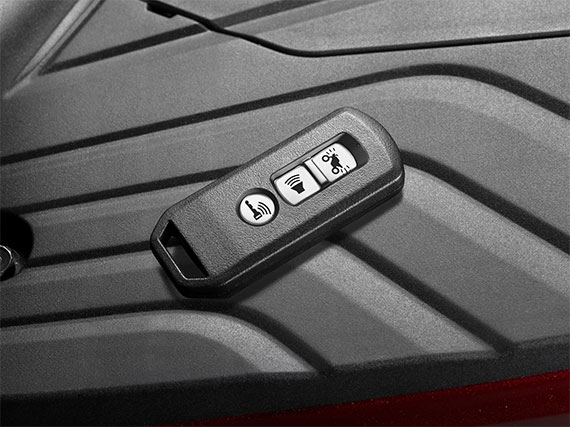

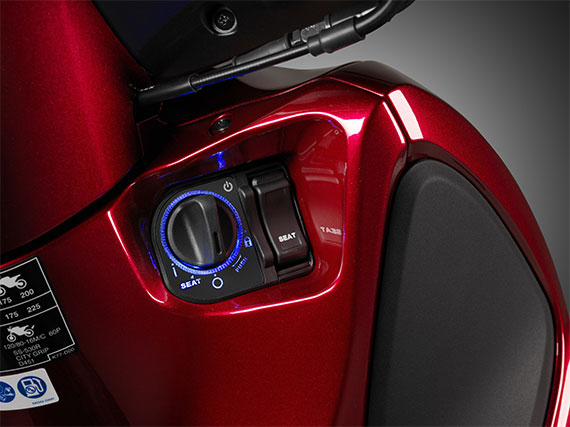

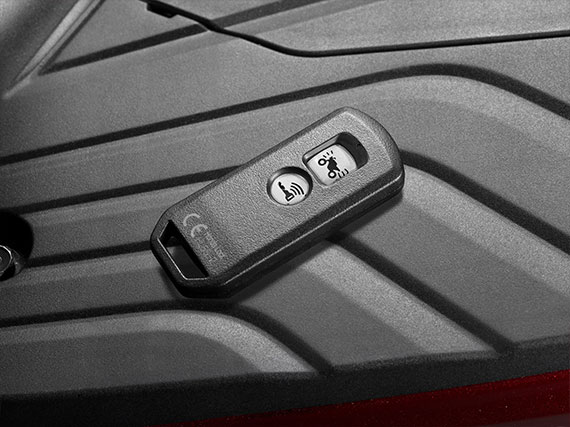

Fitur Terbaru

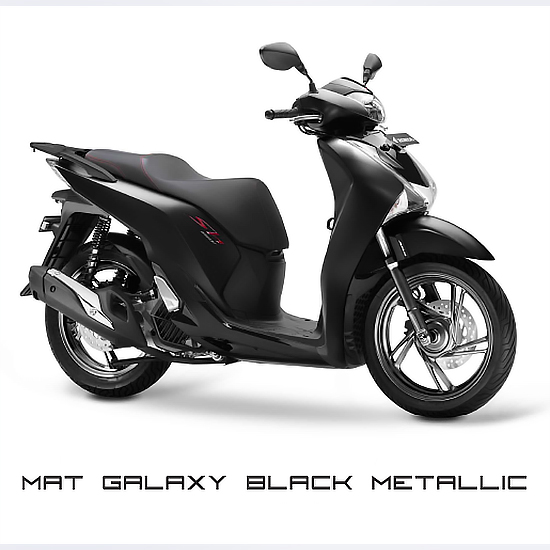

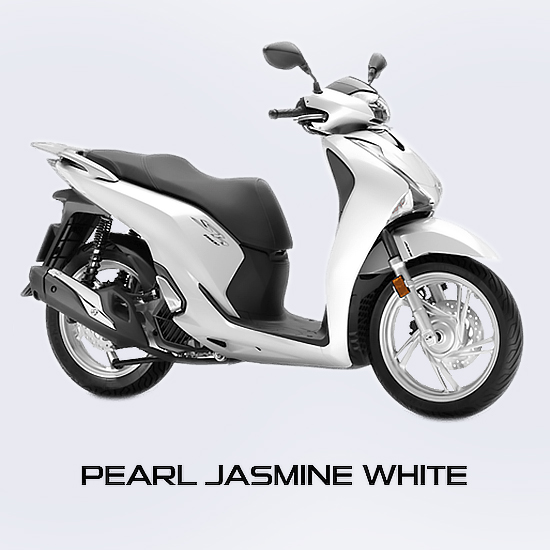

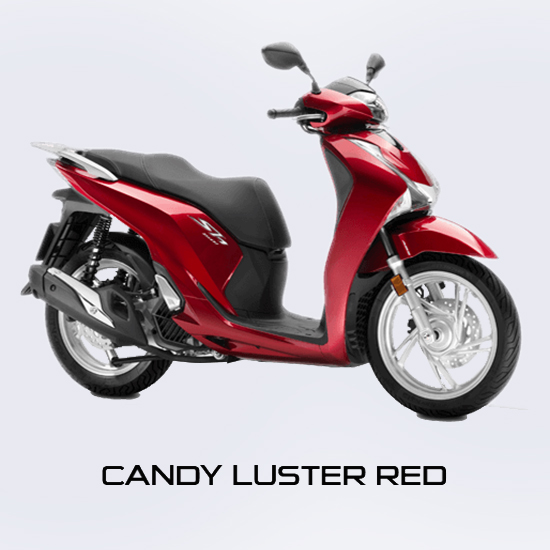

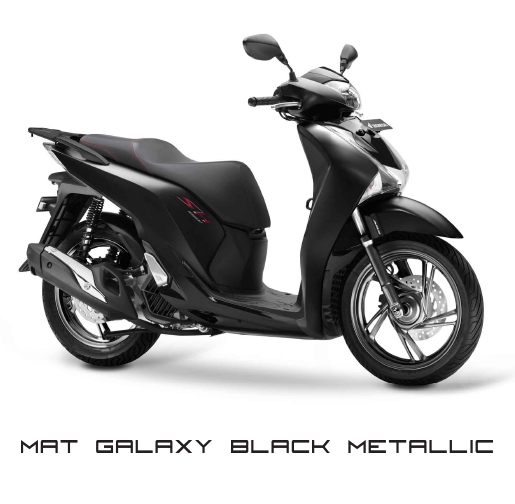

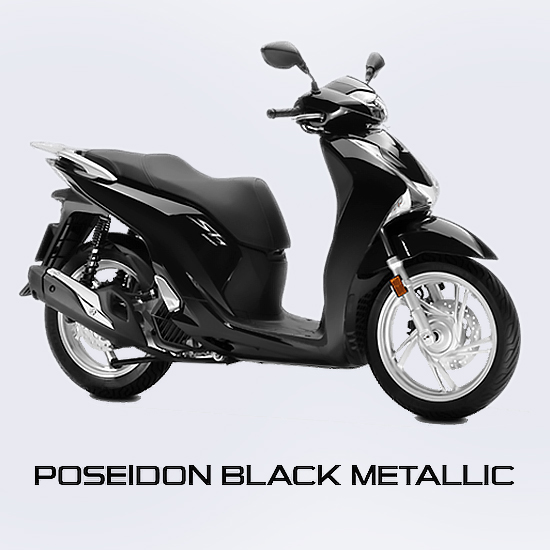

COLOR VARIANT
PRODUCT FEATURE

































































tipe mesin | Liquid Cooled, 4stroke, SOHC, eSP |
kapasitas mesin | 153 cm3 |
sistem suplai bahan bakar | PGM-FI (Programmed Fuel Injection System) |
diameter x langkah | 58 x 57.9 mm |
tipe transmisi | Automatic |
rasio kompresi | 10,6:1 |
daya maksimum | 10.9 kW/8,250rpm |
torsi maksimum | 13,9 Nm/6,500rpm |
tipe starter | Electric |
tipe kopling | Automatic Centrifugal, Dry |
tipe rangka | Steel, under born type |
tipe suspensi depan | 33 mm telescopic fork, 89 mm axle travel |
tipe suspensi belakang | Dual damper unit swing arm, 83 mm axle travel with 5-step preload adjusment |
ukuran ban depan | 100/80–16 M/C 50P ( Tubeless ) U-section 10 spoke cast aluminum |
ukuran ban belakang | 120/80–16 M/C 60P ( Tubeless ) U-section 10 spoke cast aluminum |
rem depan | Disc Brake, 2 Piston Calipers, 240 mm Disc |
rem belakang | Disc Brake, 1 Piston Calipers, 240 mm Disc |
Sistem Pengereman | Antilock Braking System 2 Channel |
panjang x lebar x tinggi | 2,026 x 740 x 1,158 mm (LxWxH) |
jarak sumbu roda | 1,340 mm |
jarak terendah ke tanah | 146 mm |
curb weight | 136 kg (ABS) |
Radius Putar | 26° |
Tinggi Tempat Duduk | 799 mm |
kapasitas minyak pelumas | 0.9 liter |
kapasitas tangki bahan bakar | 7.5 liters |
tipe baterai atau aki | 12V/5AH, ACG Output 343W |
sistem pengapian | Digital transistorized with electronic advance, 12° BTDC (idle) ~ 65° BTDC (8,500min1) |
tipe busi | CPR7EA9(NGK) |
Lampu Depan | LED |
