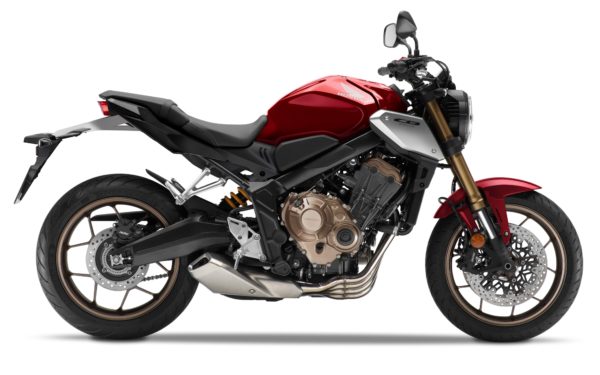

CB650R

Description

PRODUCT FEATURE

Mesin
tipe mesin Liquid-Cooled, 4-Stroke, DOHC Four Cylinder
kapasitas mesin 648,72 cc
sistem suplai bahan bakar PGM-FI (Programmed Fuel Injection System)
diameter x langkah 67 mm x 46 mm
tipe transmisi Constant mesh, 6 Speed
rasio kompresi 11,6 : 1
daya maksimum 66,5 kW/11.000 rpm
torsi maksimum 60,7 Nm/8.000 rpm
tipe starter Electric
tipe kopling Wet, Multiple with Coil Spring
Rangka & kaki-kaki
tipe rangka Diamond, Steel
tipe suspensi depan 41 mm Inverted Telescopic Fork
tipe suspensi belakang Aluminum Swing Arm, Adjustable Monoshock
ukuran ban depan 120/70R17M/C (58W)
ukuran ban belakang 180/55ZR17M/C (73W)
rem depan Hydraulic, Double 310mm Disc with Four Piston Calipers
rem belakang Hydraulic, Single 240mm Disc with Single Piston Calipers
Sistem Pengereman ABS 2 Channel
Dimensi & berat
panjang x lebar x tinggi 2.128 x 784 x 1.076 mm
jarak sumbu roda 1.449 mm
jarak terendah ke tanah 148 mm
curb weight 203 kg
Tinggi Tempat Duduk 810 mm
Kapasitas
kapasitas minyak pelumas 2,3 L (Periodic Exchange)
kapasitas tangki bahan bakar 15,4 L
Kelistrikan
tipe baterai atau aki 12V/8,6 AH
sistem pengapian Full Transisterized, Battery
tipe busi NGK IMR9E-9HES
Lampu Depan Hi 9,3 W x 1 (LED)
