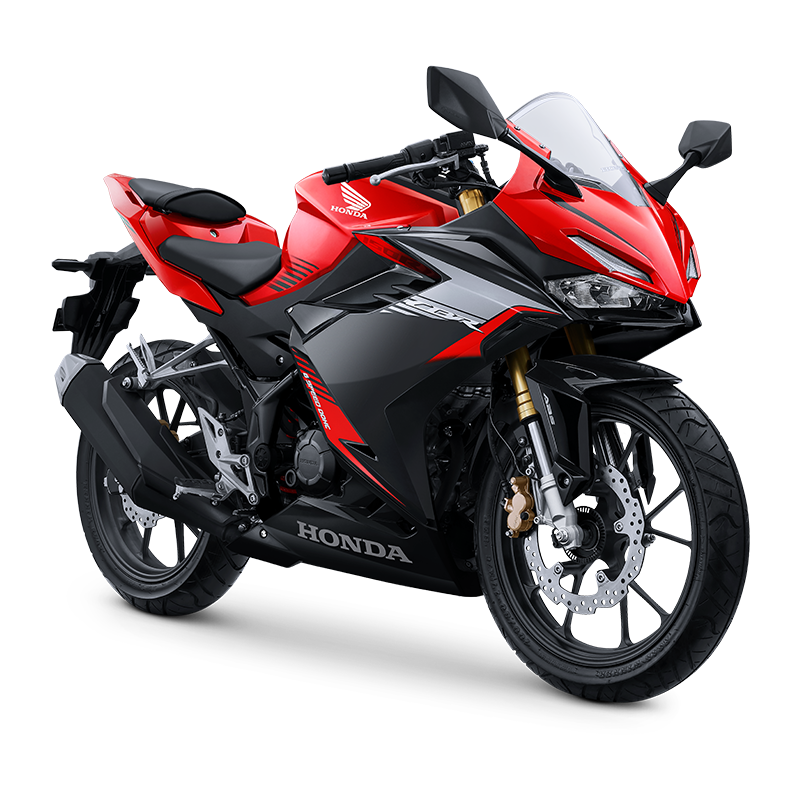

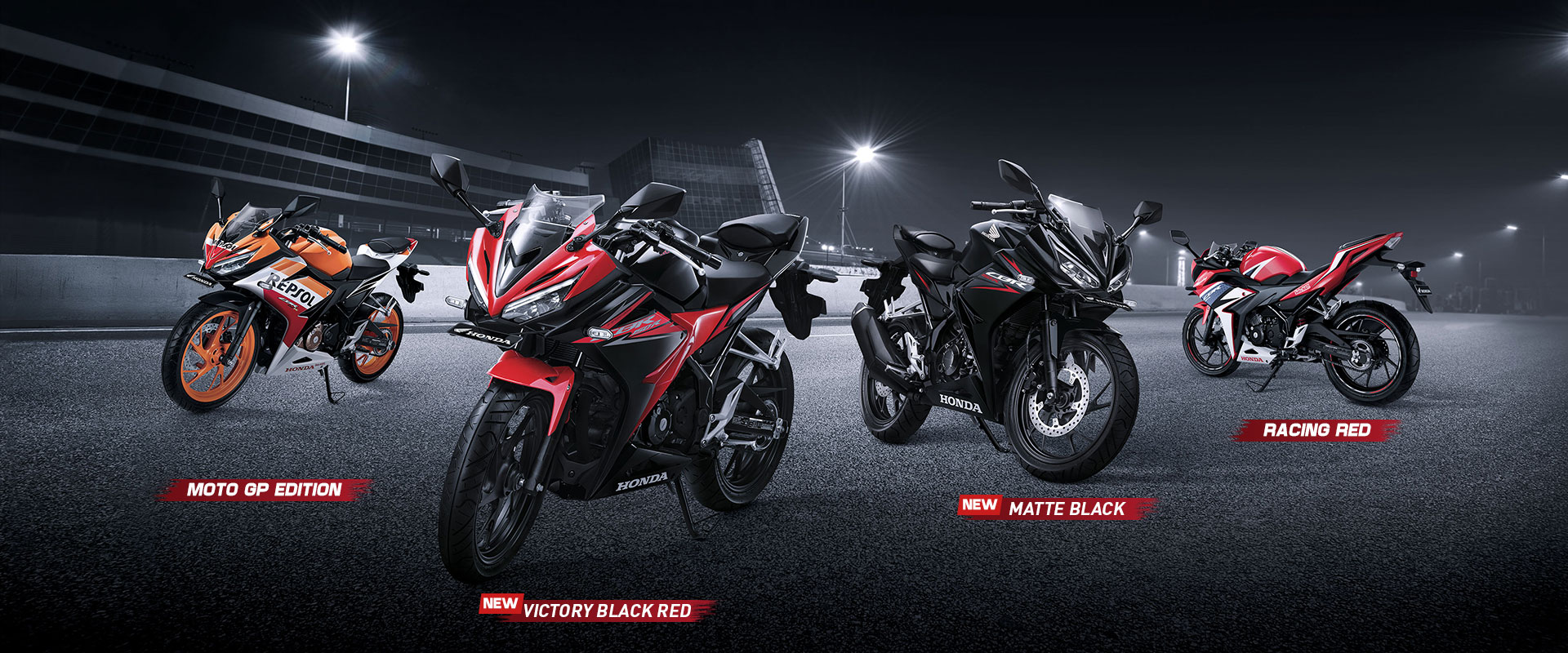

COLOR VARIANT

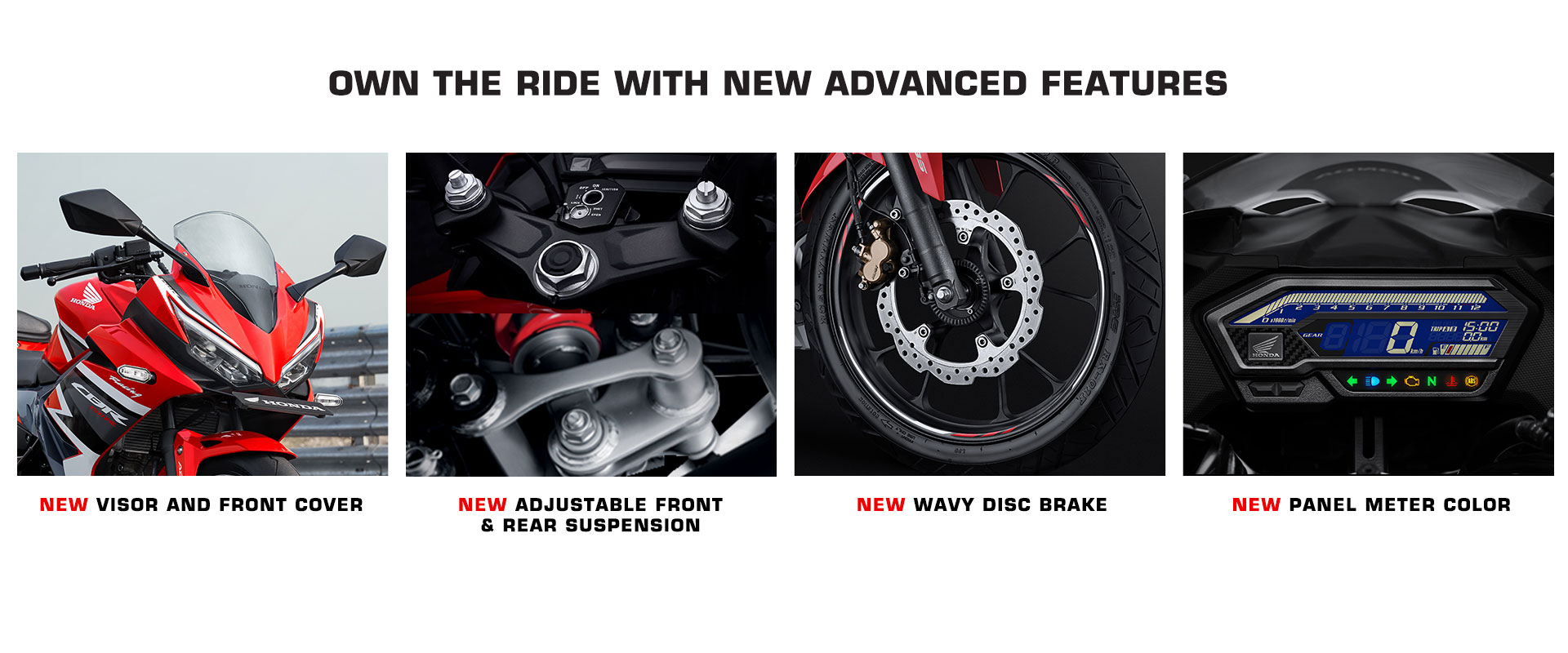

PRODUCT FEATURE

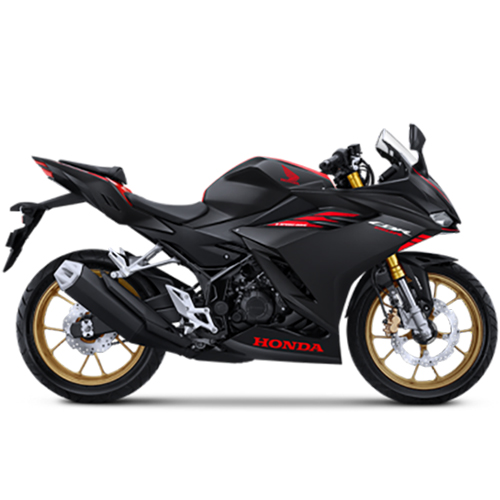

CBR150R

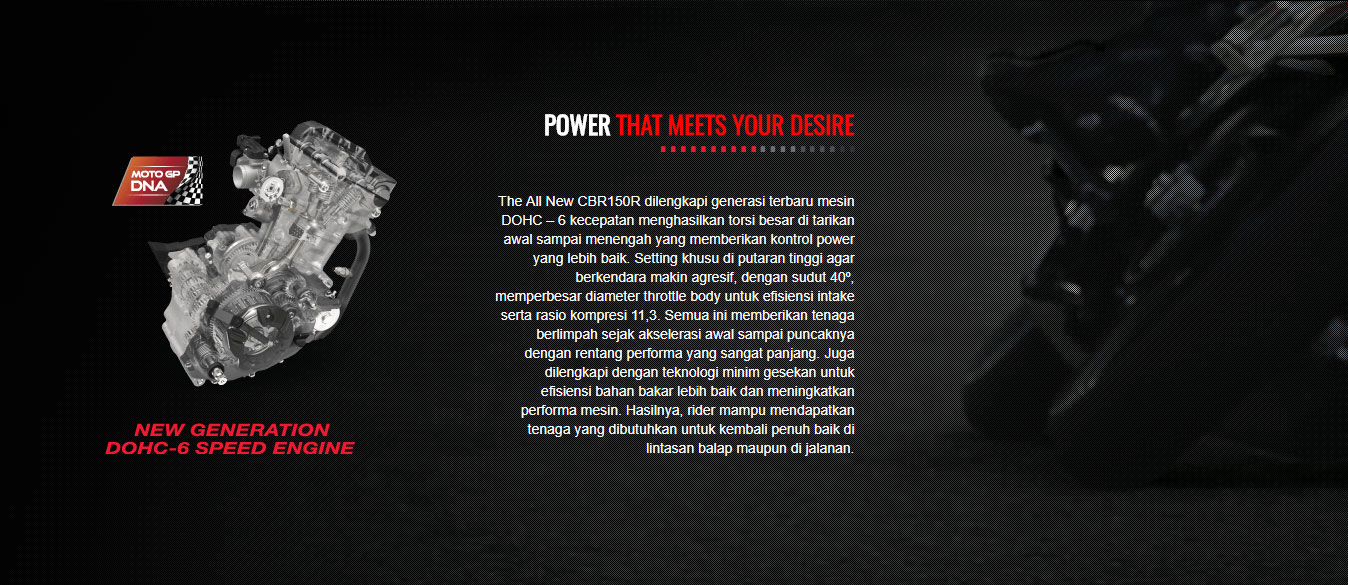

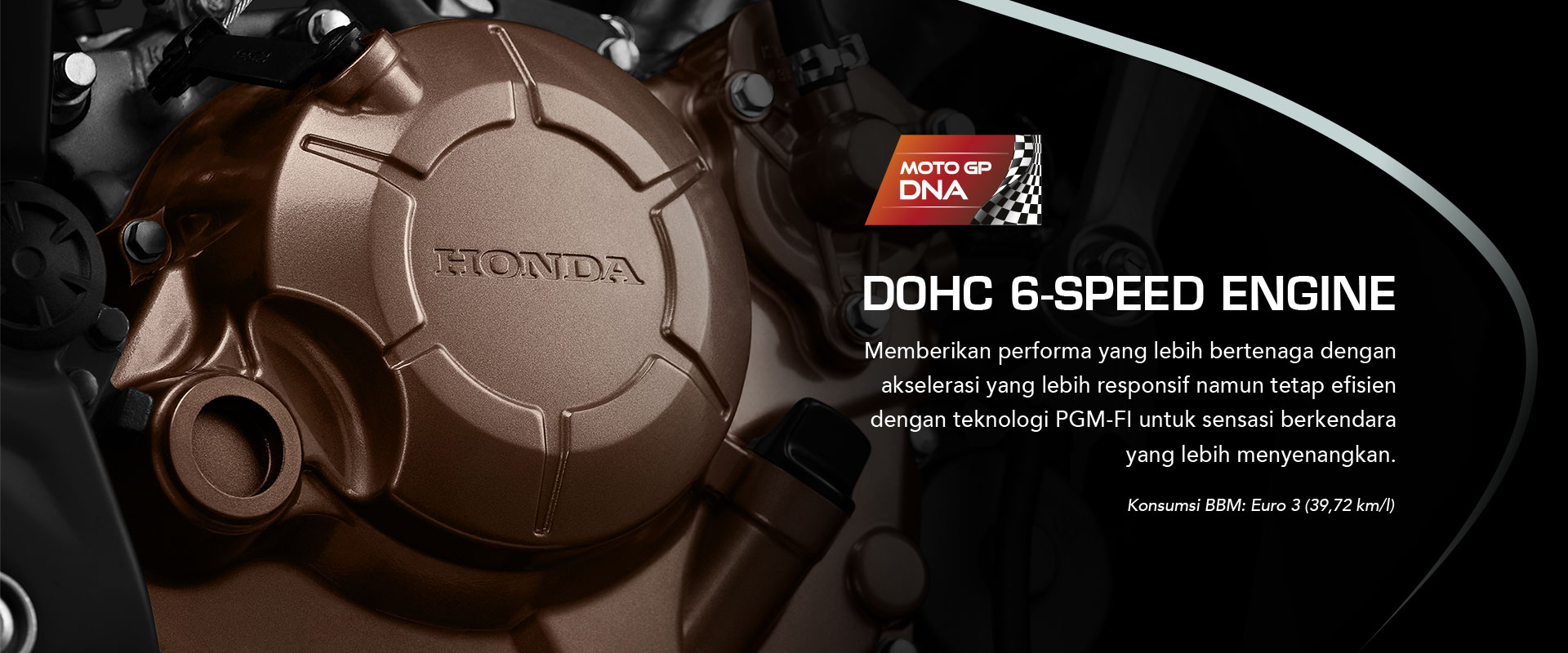

Mesin
| tipe mesin | 4-Langkah, DOHC |
| kapasitas mesin | 149,16 cc |
| sistem suplai bahan bakar | PGM-FIPGM-FI (Programmed Fuel Injection) |
| diameter x langkah | 57,3 x 57,8 mm |
| tipe transmisi | Manual, 6 kecepatan |
| rasio kompresi | 11,3 : 1 |
| daya maksimum | 12,6 kW (17,1 PS / 9.000 rpm ) |
| torsi maksimum | 14,4 Nm (1.47 kgf.m / 7.000 rpm ) |
| tipe starter | Elektrik |
| tipe kopling | Wet |
| sistem pendingin mesin | Liquid Cooled with Auto Fan |
| pola perpindahan gigi | 1-N-2-3-4-5-6 |
Rangka & kaki-kaki

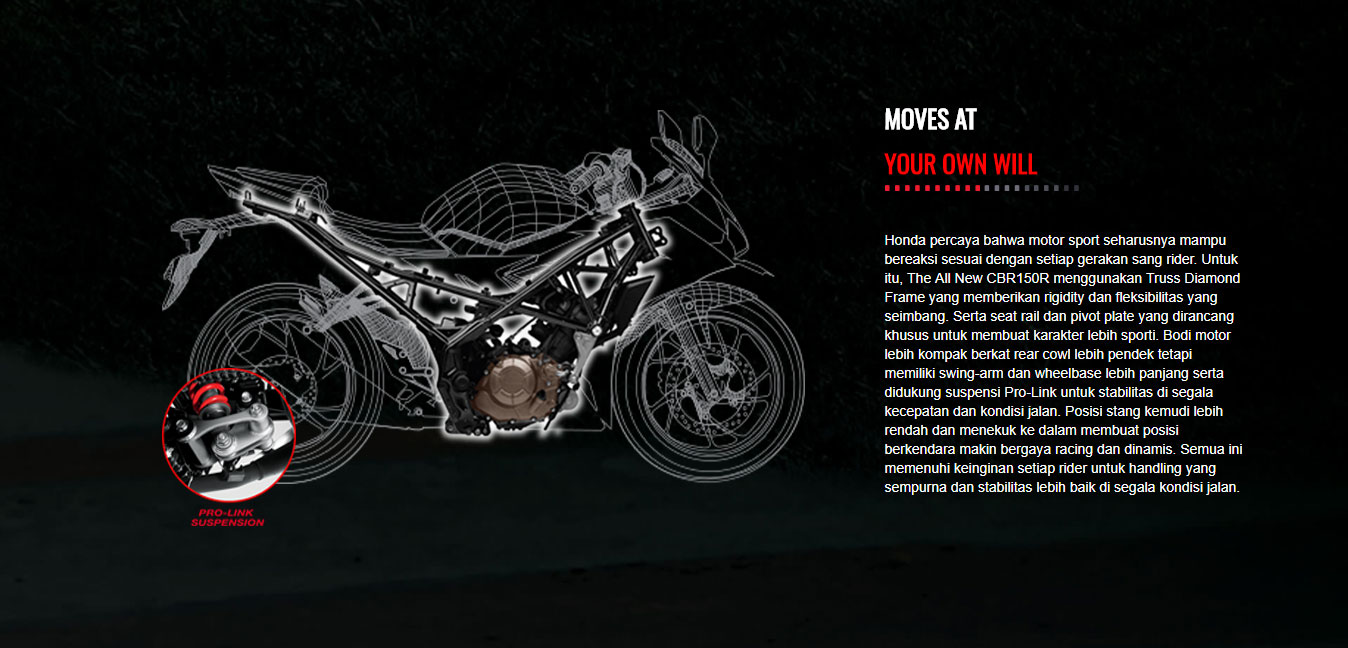

| tipe rangka | Diamond (Truss) Frame |
| tipe suspensi depan | Inverted Telescopic Front Suspension |
| tipe suspensi belakang | Swing Arm with Monoshock (Pro-Link) System |
| ukuran ban depan | 100/80-17M/C 52P |
| ukuran ban belakang | 130/70-17M/C 62P |
| rem depan | Wavy Disc Brake (Non-ABS)/Wavy Disc Brake - ABS (ABS) |
| rem belakang | Wavy Disc Brake (Non-ABS)/Wavy Disc Brake - ABS (ABS) |
Dimensi & berat
| panjang x lebar x tinggi | 1.983 x 700 x 1.077 mm |
| jarak sumbu roda | 1.310 mm |
| jarak terendah ke tanah | 160 mm |
| curb weight | 137 kg (Non ABS)/139 kg (ABS) |
| Tinggi Tempat Duduk | 782 mm |
Kapasitas
| kapasitas minyak pelumas | 1,1 Liter |
| kapasitas tangki bahan bakar | 12 Liter |
Kelistrikan
| tipe baterai atau aki | MF Wet 12V 5Ah |
| sistem pengapian | Fully Transistorized |
| tipe busi | NGK MR9C-9N atau ND U27EPR-N9 |
