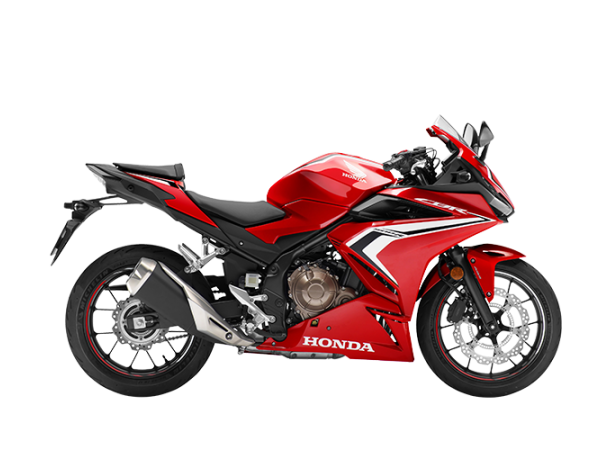

CBR500R

Description

PRODUCT FEATURE

COLOR VARIANT



Mesin
tipe mesin Liquid-Cooled, 4-Stroke, DOHC Parallel Twin Cylinders
kapasitas mesin 471,03 cc
sistem suplai bahan bakar PGM-FI (Programmed Fuel Injection System)
diameter x langkah 67 mm x 66.8 mm
rasio kompresi 10.7 : 1
daya maksimum 37 kW/8,500 rpm
torsi maksimum 44,6 Nm/6.500 rpm
tipe kopling Wet, Multiple with Coil Spring
Rangka & kaki-kaki
tipe rangka Diamond, Steel
tipe suspensi depan Showa, 41 mm Telescopic Fork, Adjustable
tipe suspensi belakang Swing Arm, Adjustable Showa Monoshock with Prolink
ukuran ban depan 120/70ZR17M/C (58W)
ukuran ban belakang 160/60ZR17M/C (69W)
rem depan Hydraulic, Single 320 mm Wavy Disc with Two Piston Calipers
rem belakang Hydraulic, Single 240 mm Wavy Disc with Single Piston Caliper
Sistem Pengereman ABS 2 Channel
Dimensi & berat
panjang x lebar x tinggi 2,081 x 758 x 1,145 mm
jarak sumbu roda 1.409 mm
jarak terendah ke tanah 130 mm
curb weight 192 kg
Radius Putar 25,5
Tinggi Tempat Duduk 789 mm
Kapasitas
kapasitas minyak pelumas 2,5L (Periodic Exchange)
kapasitas tangki bahan bakar 16,7 L
Kelistrikan
tipe baterai atau aki 12V/8,6 AH
sistem pengapian Full Transisterized, Battery
tipe busi NGK CPR8EA-9
Lampu Depan Hi 6,4 W x 2 (LED)
