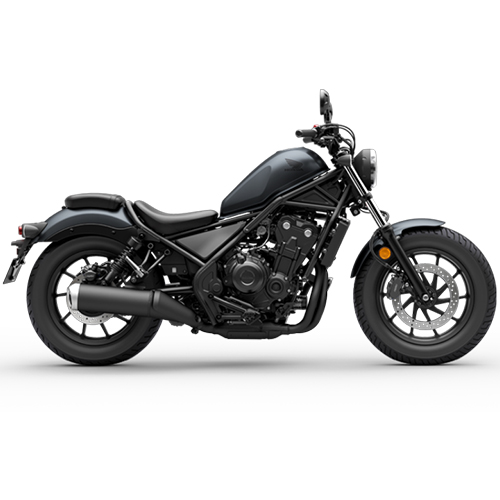

CMX500 REBEL

Description

PRODUCT FEATURE

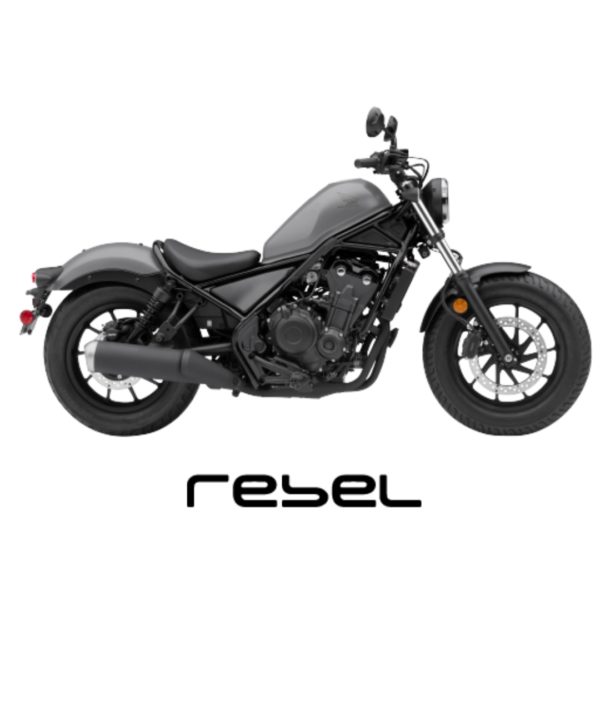

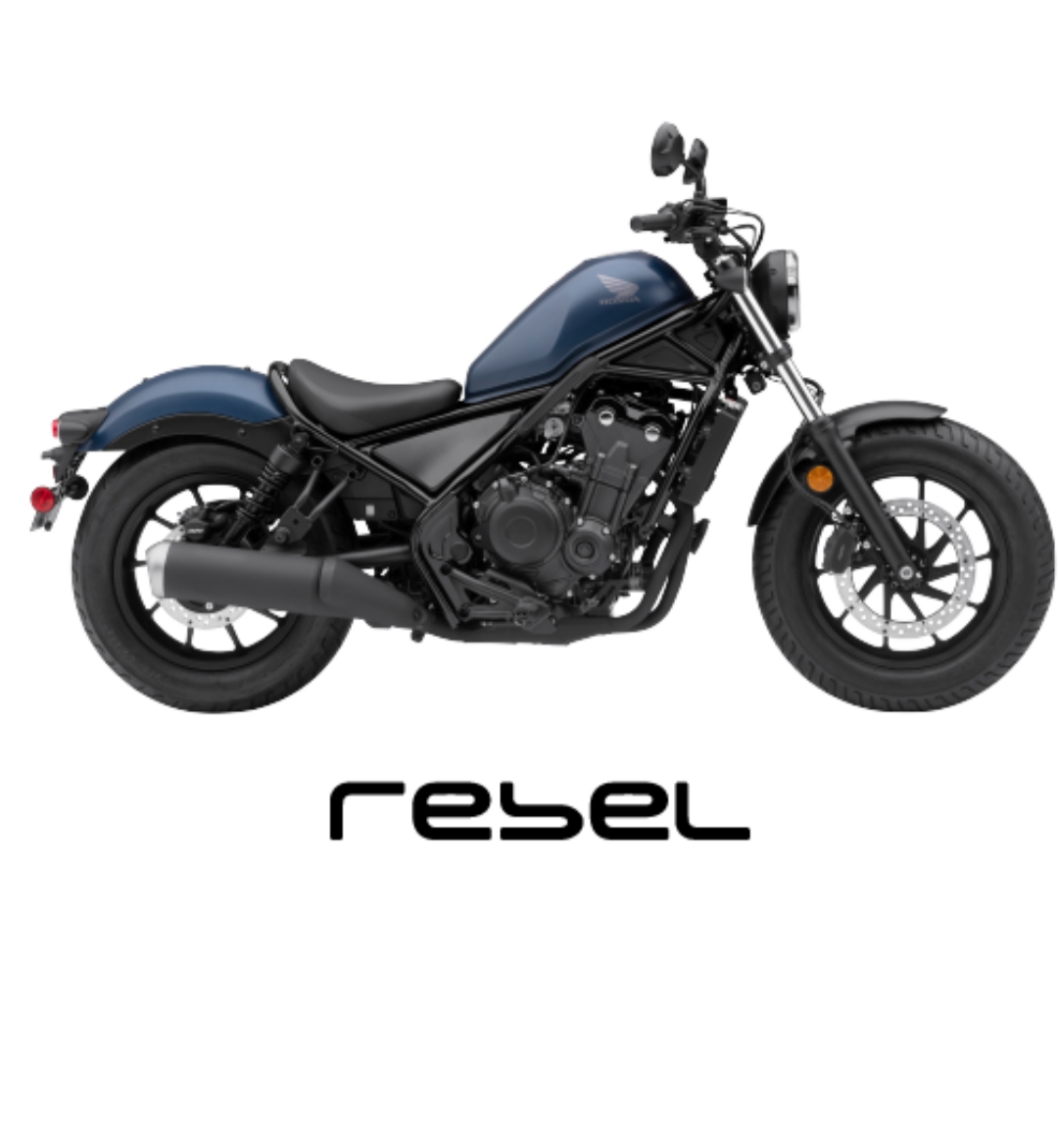

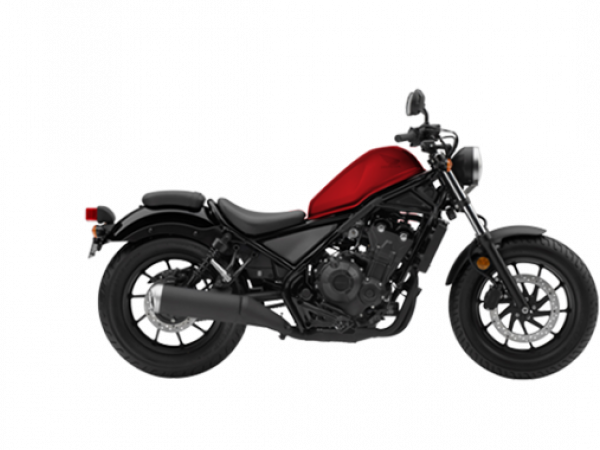

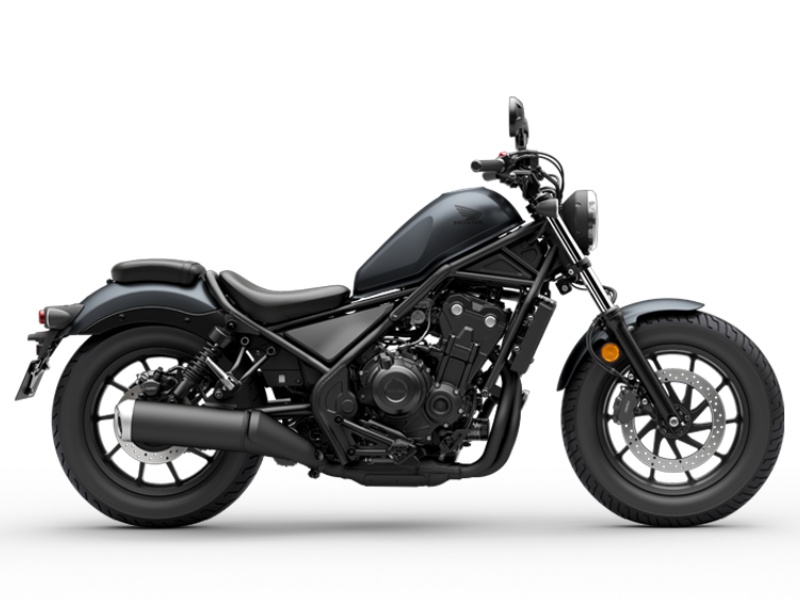

COLOR VARIANT
Mesin
tipe mesin Liquid Cooled, 4-Stroke, DOHC Parallel Twin Cylinde
kapasitas mesin 471,03 cc
sistem suplai bahan bakar PGM-FI (Programmed Fuel Injection System)
diameter x langkah 67 x 66.8 mm
tipe transmisi Constant mesh, 6 Speed
rasio kompresi 10.7 : 1
daya maksimum 33,5 kW/8.500 rpm
torsi maksimum 43,6 Nm/5.500 rpm
tipe starter Electric
tipe kopling Wet, Multiple with Coil Spring
Rangka & kaki-kaki
tipe rangka Diamond, Steel
tipe suspensi depan Showa, 41 mm Telescopic Fork
tipe suspensi belakang Adjustable, Twin Rear Suspension
ukuran ban depan 130/90-16M/C (67H)
ukuran ban belakang 150/80-17M/C (71H)
rem depan Hydraulic, Single 296 mm Disc
rem belakang Hydraulic, Single 240 mm Disc
Sistem Pengereman ABS 2 Channel
Dimensi & berat
panjang x lebar x tinggi 2.190 x 820 x 1.093 mm
jarak sumbu roda 1.490 mm
jarak terendah ke tanah 136 mm
curb weight 190 kg
Tinggi Tempat Duduk 690 mm
Kapasitas
kapasitas minyak pelumas 2,5 L (Periodic Exchange)
kapasitas tangki bahan bakar 11,2 L
Kelistrikan
tipe baterai atau aki 12V - 7Ah
sistem pengapian Full Transisterized, Battery
tipe busi NGK CPR8EA-9
Lampu Depan Hi 60 W x 1 Bulb
