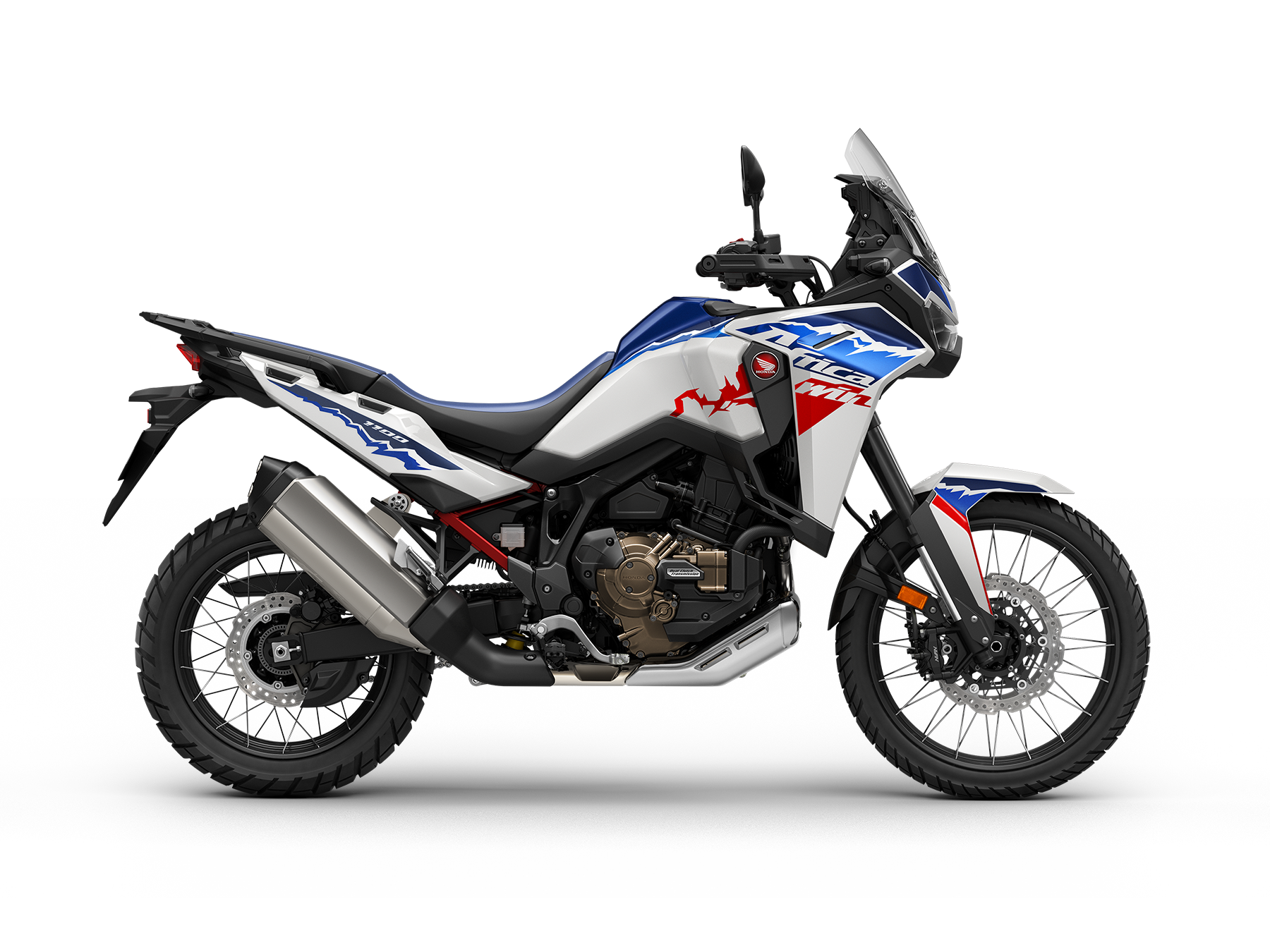

COLOR VARIANT
PRODUCT FEATURE
Mesin
| tipe mesin | 4-stroke 8-valve Parallel Twin with 2700 vrank and uni-cam |
| kapasitas mesin | 1.084 cc |
| sistem suplai bahan bakar | PGM-FI (Programmed Fuel Injection System) |
| diameter x langkah | 92 mm x 81,5mm |

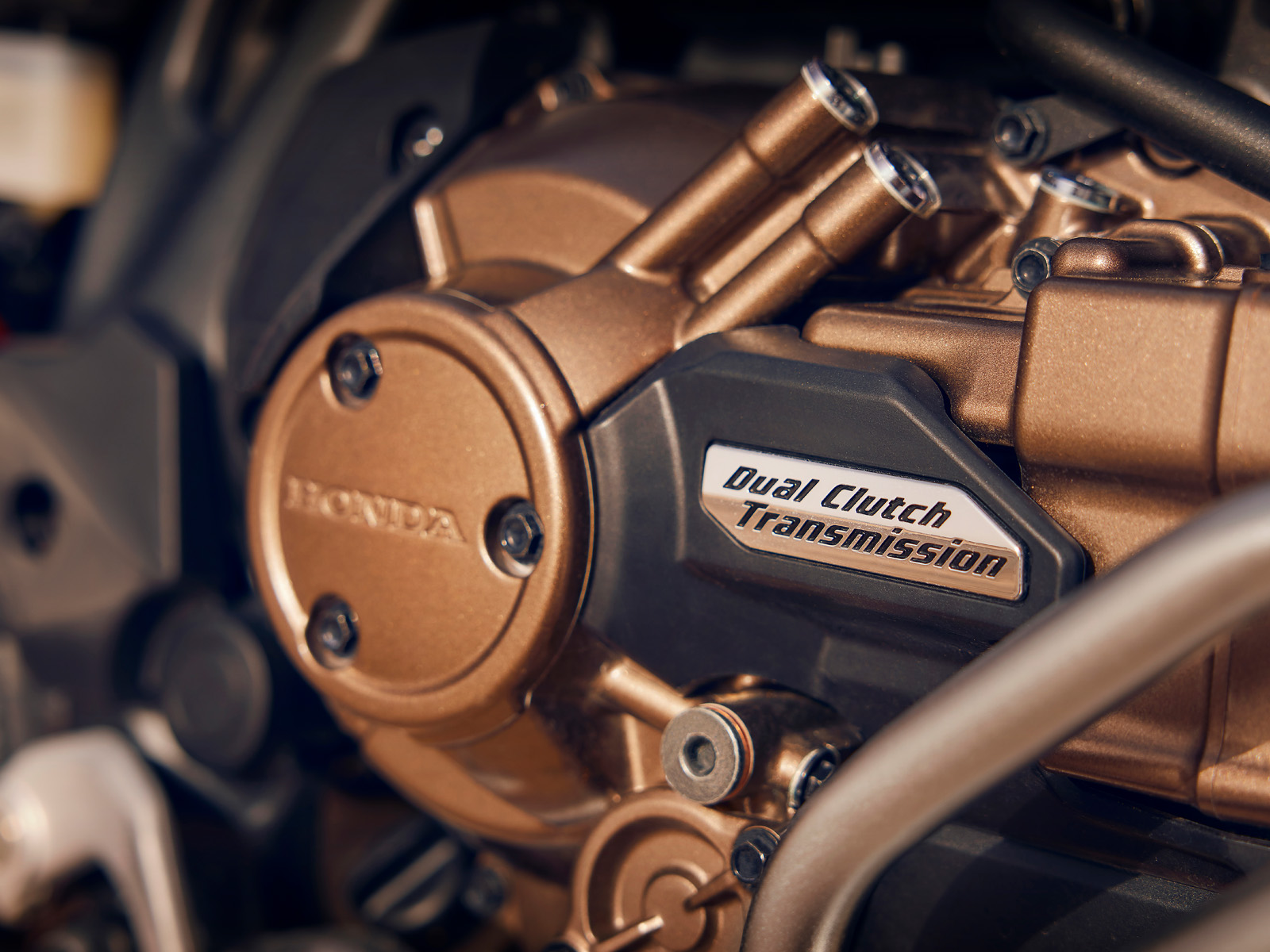

| tipe transmisi | 6 speed Manual, DCT |
| rasio kompresi | 10,1 : 1 |
| daya maksimum | 75 kW/7,500 rpm |
| torsi maksimum | 105 Nm/6,000 rpm |
| tipe starter | Electric |
| tipe kopling | Wet, 2 multiple with coil springs (DCT) |
| sistem pendingin mesin | Liquid Cooled |
Rangka & kaki-kaki
| tipe rangka | Semi Double Cradle |
| tipe suspensi depan | Front Showa 45 mm Inverted Telescopic Fork with 252 mm stroke, 224 mm Axle Travel |
| tipe suspensi belakang | Rear Showa, Pro-Link, 240 mm Axle Travel, 101 mm stroke |
| ukuran ban depan | Front 90/90 - 21M/C 54 H Tube Type |
| ukuran ban belakang | Rear 150/70R18 M/C Tube Type |
| rem depan | Front Hydraulic, dual 310 mm wave floating hydraulic with aliminium hub and radial fit 4-piston |
| rem belakang | Rear Hydraulic Disc 256 mm |
| Sistem Pengereman | ABS |
Dimensi & berat
| panjang x lebar x tinggi | 2,330 x 960 x 1,560 mm |
| jarak sumbu roda | 1,575 mm |
| jarak terendah ke tanah | 210 mm |
| curb weight | 229 Kg (M/T), 240 kg(DCT) (Africa Twin) |
| Tinggi Tempat Duduk | 830 mm (High); 810 mm (Low) |
Kapasitas
| kapasitas minyak pelumas | 3,90 Liters (Periodic Exchange) |
| kapasitas tangki bahan bakar | 24,8 liters |
Kelistrikan
| sistem pengapian | Full Transisterized, Battery |
| tipe busi | NGK SILMAR8A9S |
| Lampu Depan | Hi 15,65 W x 2 ; Low 9,35W x 2 |
