Download Katalog Part

Lihat Pricelist

Description
Product Specifications

Description

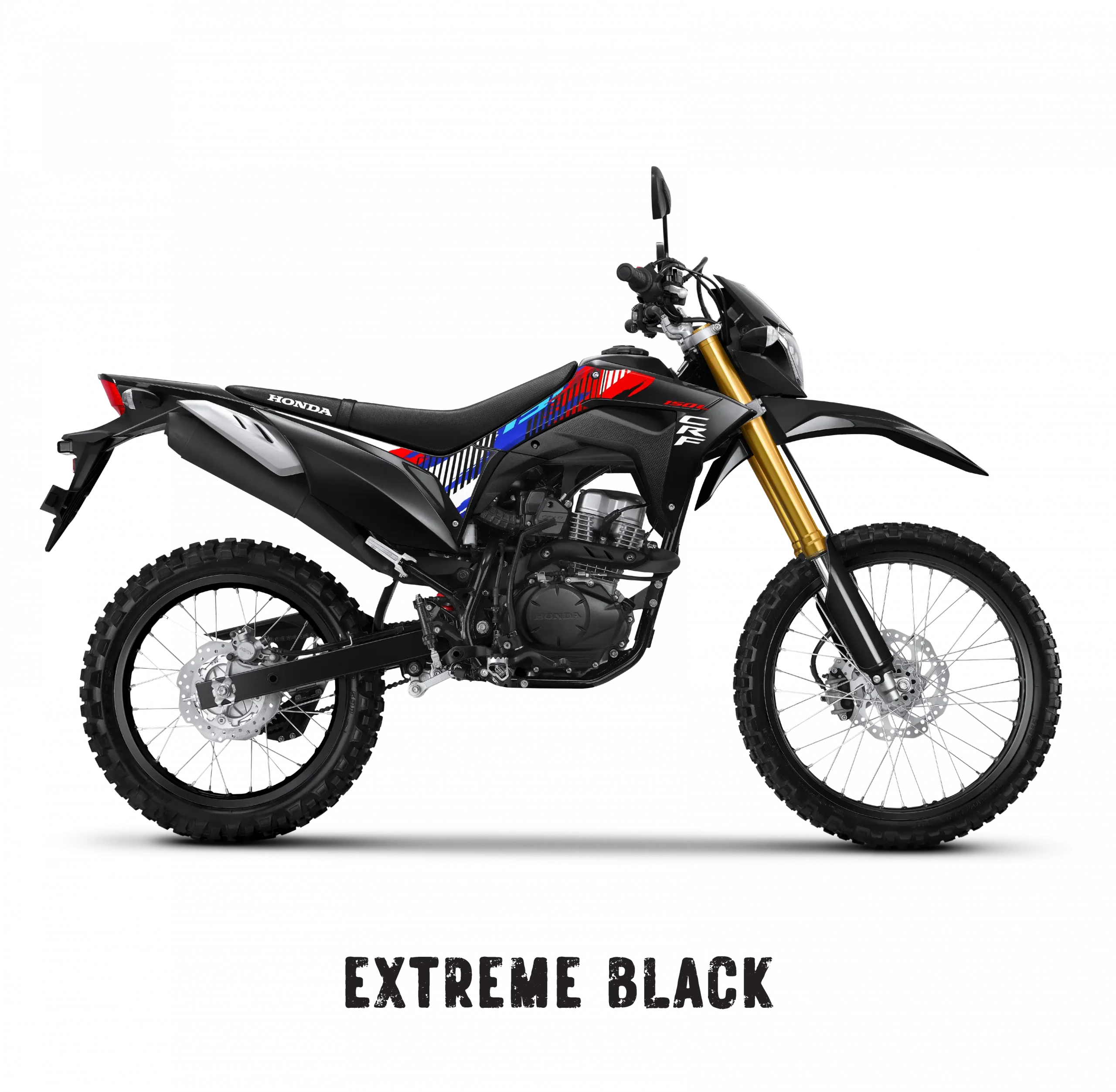

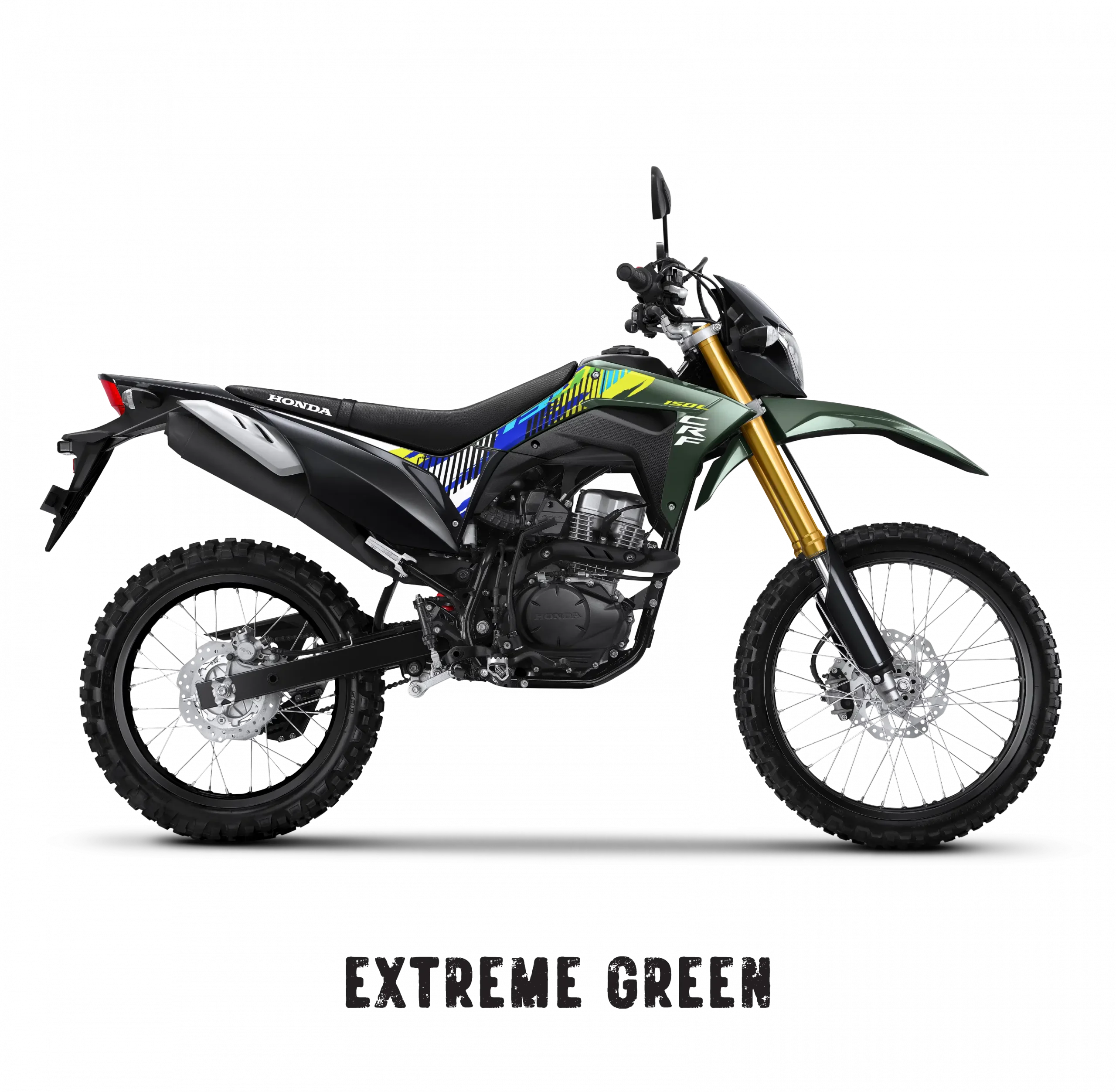

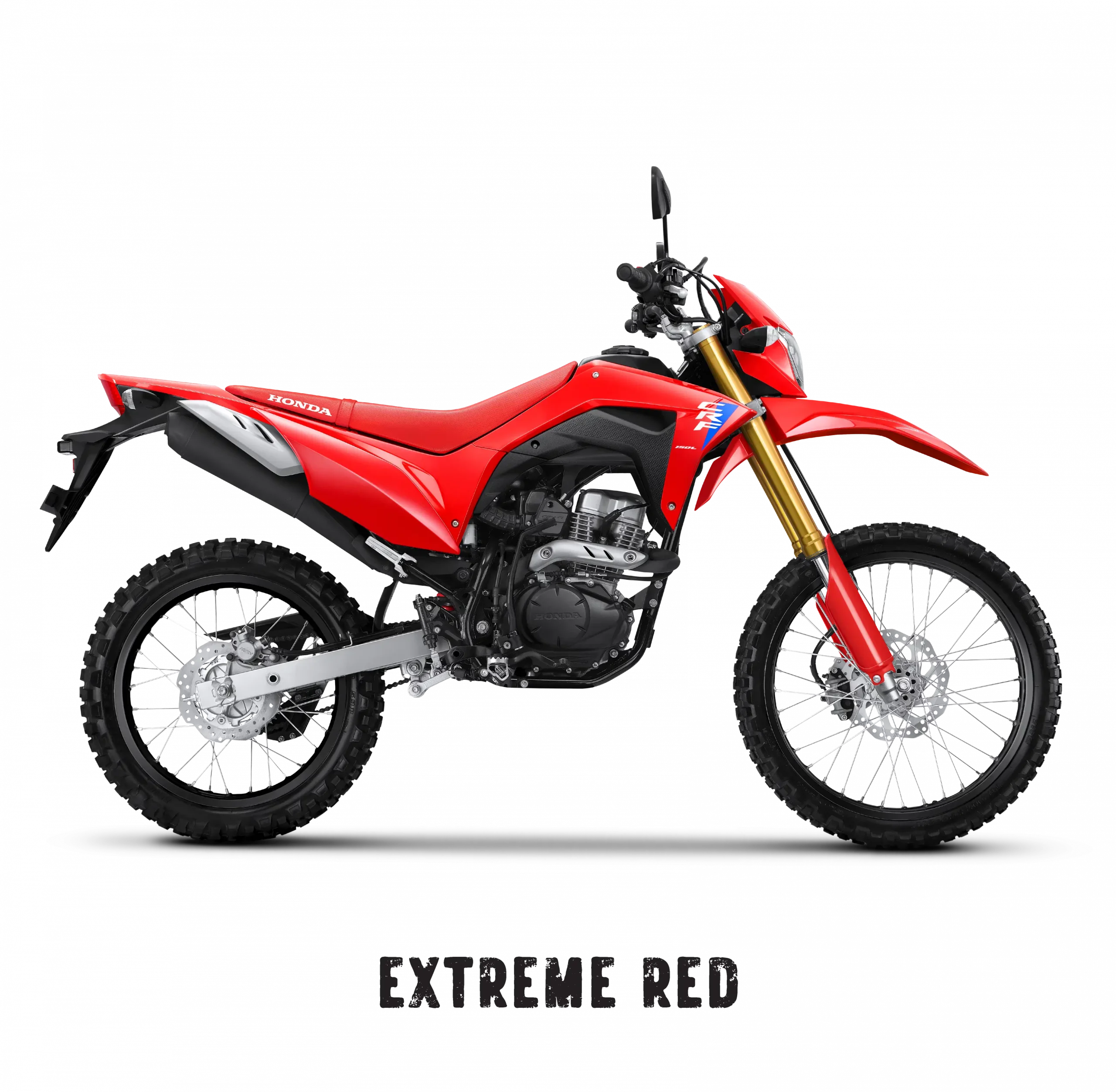

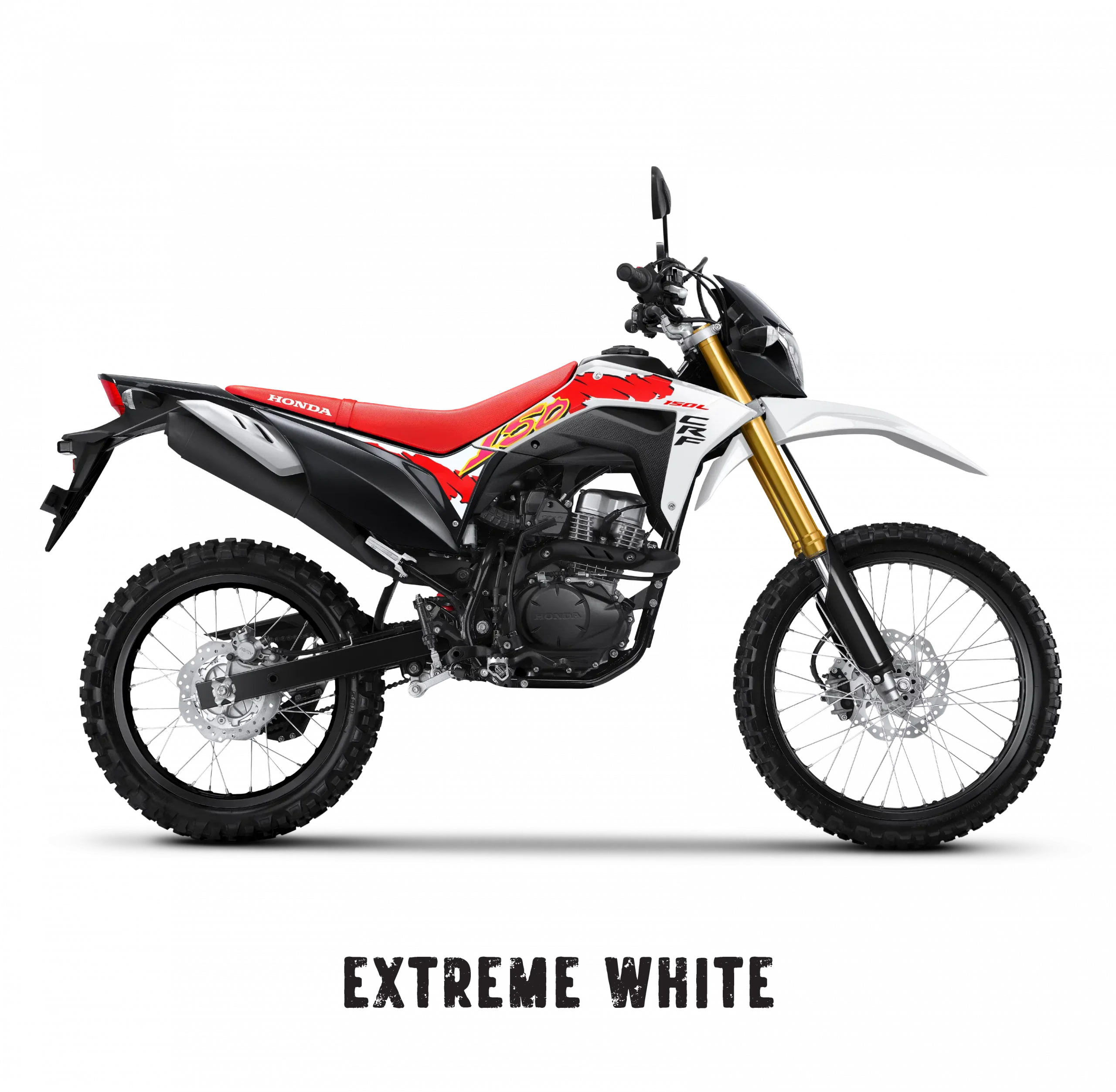

COLOR VARIANT

PRODUCT FEATURE

Mesin

tipe mesin	4-Langkah, SOHC, Satu Silinder
kapasitas mesin	149.15 cm3
sistem suplai bahan bakar	PGM-FI (Programmed Fuel Injection)
diameter x langkah	57.3 x 57.8 mm
tipe transmisi	5-Speed
rasio kompresi	9.5:1
daya maksimum	9,51 kW(12,91 PS)/8.000 rpm
torsi maksimum	12,43 Nm(1,27 kgf.m)/6.500 rpm
tipe starter	Pedal dan Elektrik
tipe kopling	Manual, Multiplate Wet Clutch
sistem pendingin mesin	Pendingin Udara
pola perpindahan gigi	1 – N – 2 – 3 – 4 – 5

Rangka & kaki-kaki

tipe rangka	Semi Double Cradle
tipe suspensi depan	Inverted Telescopic Front Suspension (Diameter 37 mm & Stroke 225 mm)
tipe suspensi belakang	Monosuspension with Pro-Link Suspension System (Axle Travel 207 mm)
ukuran ban depan	2.75 – 21 45P (Ban Dalam)
ukuran ban belakang	4.1 – 18 59P (Ban Dalam)
rem depan	Cakram Hidrolik (Wavy Disc, 240 mm)
rem belakang	Cakram Hidrolik (Wavy Disc, 220 mm)

Dimensi & berat

panjang x lebar x tinggi	2.119 X 793 X 1.153 mm
jarak sumbu roda	1.375 mm
jarak terendah ke tanah	285 mm
curb weight	122 kg
Tinggi Tempat Duduk	869 mm

Kapasitas

kapasitas minyak pelumas	1.0 Liter (Penggantian periodik)
kapasitas tangki bahan bakar	7.2 L

Kelistrikan

tipe baterai atau aki	MF Wet 12V 3.5Ah
sistem pengapian	Full Transisterized
tipe busi	NGK MR9C-9N atau ND U27EPR-N9
