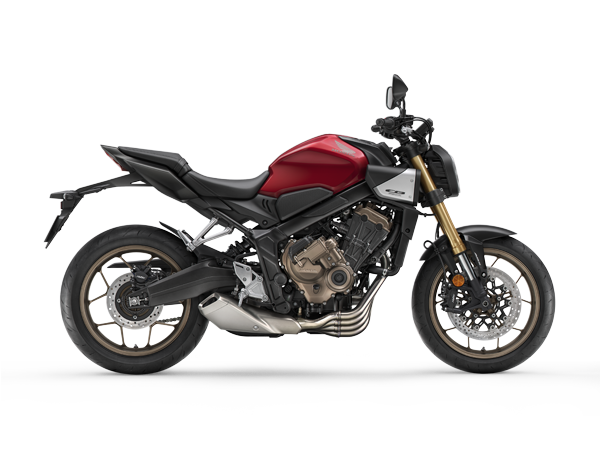

COLOR VARIANT
PRODUCT FEATURE
CB650R
Mesin
| tipe mesin | Liquid-Cooled, 4-Stroke, DOHC Four Cylinder |
| kapasitas mesin | 648,72 cc |
| sistem suplai bahan bakar | PGM-FI (Programmed Fuel Injection System) |
| diameter x langkah | 67 mm x 46 mm |
| tipe transmisi | Constant mesh, 6 Speed |
| rasio kompresi | 11,6 : 1 |
| daya maksimum | 66,5 kW/11.000 rpm |
| torsi maksimum | 60,7 Nm/8.000 rpm |
| tipe starter | Electric |
| tipe kopling | Wet, Multiple with Coil Spring |
Rangka & kaki-kaki
| tipe rangka | Diamond, Steel |
| tipe suspensi depan | 41 mm Inverted Telescopic Fork |
| tipe suspensi belakang | Aluminum Swing Arm, Adjustable Monoshock |
| ukuran ban depan | 120/70R17M/C (58W) |
| ukuran ban belakang | 180/55ZR17M/C (73W) |
| rem depan | Hydraulic, Double 310mm Disc with Four Piston Calipers |
| rem belakang | Hydraulic, Single 240mm Disc with Single Piston Calipers |
| Sistem Pengereman | ABS 2 Channel |
Dimensi & berat
| panjang x lebar x tinggi | 2.128 x 784 x 1.076 mm |
| jarak sumbu roda | 1.449 mm |
| jarak terendah ke tanah | 148 mm |
| curb weight | 203 kg |
| Tinggi Tempat Duduk | 810 mm |
Kapasitas
| kapasitas minyak pelumas | 2,3 L (Periodic Exchange) |
| kapasitas tangki bahan bakar | 15,4 L |
Kelistrikan
| tipe baterai atau aki | 12V/8,6 AH |
| sistem pengapian | Full Transisterized, Battery |
| tipe busi | NGK IMR9E-9HES |
| Lampu Depan | Hi 9,3 W x 1 (LED) |
