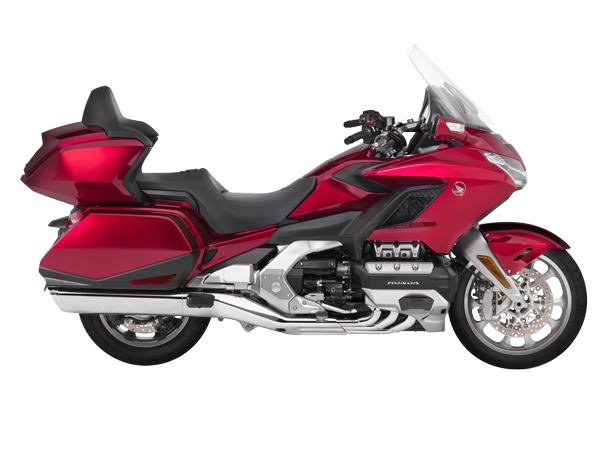

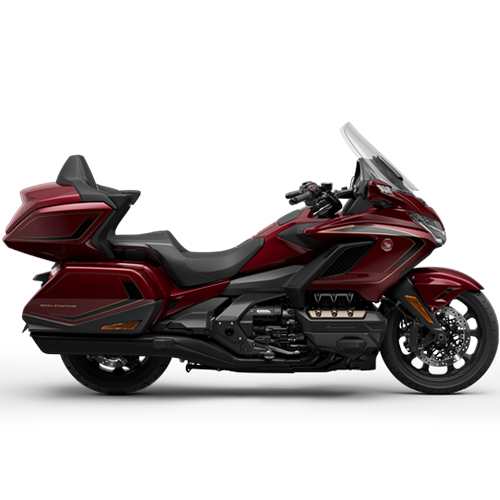

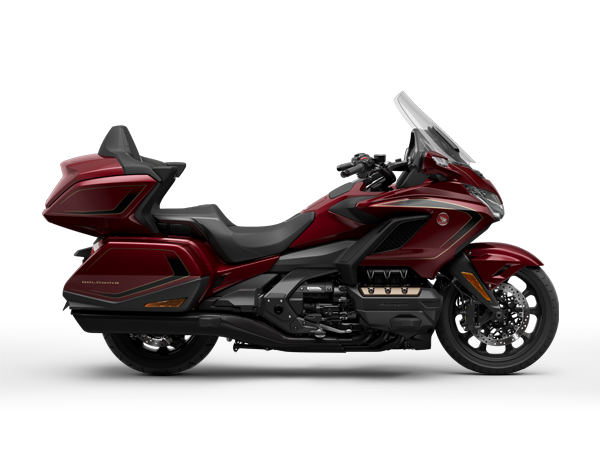

GOLD WING 1800
Mesin
| tipe mesin | Liquid-Cooled horizontally opposed six-cylinder |
| kapasitas mesin | 1.833 cm |
| sistem suplai bahan bakar | Fuel Injection (PGM-FI) |
| diameter x langkah | 73mm x 73mm |
| tipe transmisi | Seven-Speed automatic DCT, Plus reverse and walking mode |
| rasio kompresi | 10,5 : 1 |
| daya maksimum | 92,9 kW/5.500 rpm |
| torsi maksimum | 170 Nm/4.500 rpm |
| tipe starter | Electric |
| tipe kopling | Wet, Multiple with coil springs |
| sistem pendingin mesin | liquid-cooled |
Rangka & kaki-kaki
| tipe rangka | diamond twin tube type, aluminum |
| tipe suspensi depan | Double Wishbone Type; 4,3 inches travel |
| tipe suspensi belakang | Pro Arm single-side swingarm with Pro-link single shock with computer controlled |
| ukuran ban depan | 130/70R-18 M/C 63H |
| ukuran ban belakang | 200/55R-16 M/C 77H |
| rem depan | Hydraulic; dual 320mm discs |
| rem belakang | Hydraulic; single 316mm disc |
| Sistem Pengereman | ABS |
Dimensi & berat
| panjang x lebar x tinggi | 2579mm x 905mm x 1432 mm |
| jarak sumbu roda | 1.698 mm |
| jarak terendah ke tanah | 129 mm |
| curb weight | 380 kg |
| Tinggi Tempat Duduk | 745 mm |
Kapasitas
| kapasitas minyak pelumas | 4,4 L (periodic exchange) |
| kapasitas tangki bahan bakar | 21 Litres |
Kelistrikan
| tipe baterai atau aki | Battery12 V - 20 Ah, MF-Wet type |
| sistem pengapian | Full Transisterized, |
| tipe busi | NGK CR6HSB-9 |
| Lampu Depan | Hi 14,2 W x 2(LED), Low 22,8 W x 2(LED) |
